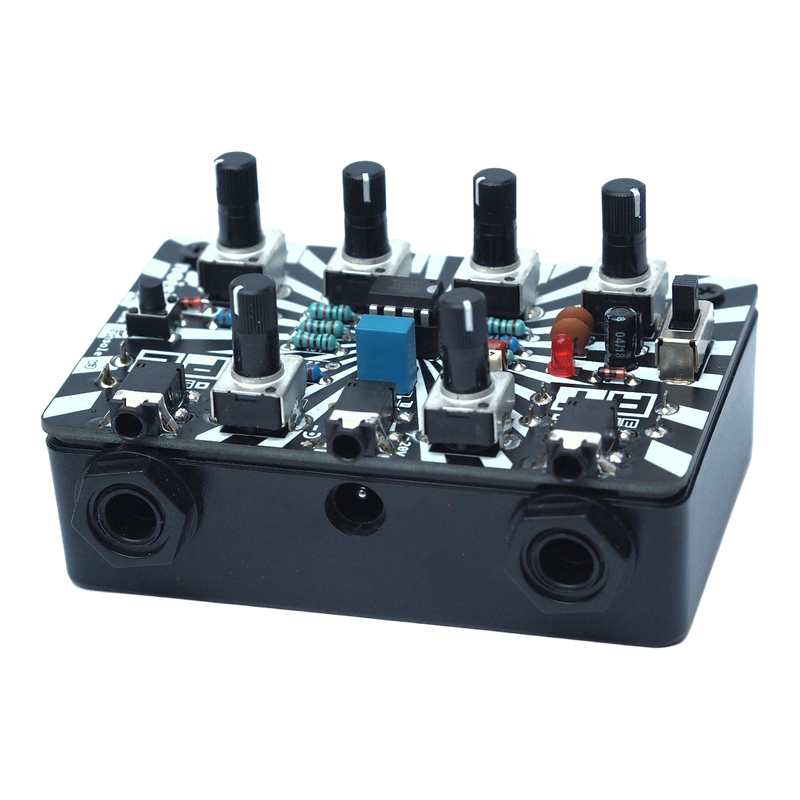

Noisio - ATtiny Punk Console v3
€45.00*
only 1 left, delivery time 3 – 5 working days **
Product information "Noisio - ATtiny Punk Console v3"
The ATtiny Punk Console v3 is a programmable 8-bit synthesizer based on the ATtiny85. Four parameter controls and touch contacts let you explore the loaded sound program, while separate tone and volume controls shape the audio output. Its audio bootloader accepts new programs as short audio files through the PROG input, allowing the instrument to take on different sound-generating roles.
Features:
• ATtiny85-based programmable 8-bit sound engine
• Audio bootloader for loading programs through the PROG socket
• Four parameter potentiometers with touch contacts
• Separate analogue tone and volume controls
• 3.5 mm and 6.35 mm audio and synchronisation connections
• Black circuit board with white print and printed component values
• Reverse-polarity protection for the power supply
DIY-Kit-Type:
SMD-Kit-2. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. It includes SMD and through-hole parts! For build guide, more info, videos etc. please check the buttons below.
| Material / Color: | Black FR4, Black PCB with white print |
|---|---|
| Power Input Type (pri.): | 9 V DC / barrel jack or battery clip |
Login
Product Safety Information
Please read this safety guide before installation or use.
Important Notice & Intended Use
• This kit is intended for adult users experienced in electronics and modular synthesis.
• Assembly, including soldering, is required.
• Proper testing and installation are essential to ensure safe and functional operation.
• The completed product is intended as a desktop / standalone unit and is powered by an external DC power supply or battery.
General Warnings
Electrical Hazards:
• Make sure the power supply matches the voltage and current ratings specified for the device (see the product manual). Using the wrong voltage can damage the module and create a safety hazard.
• Wrong polarity can damage your device, make sure the unit is connected with correct polarity.
Heat Generation:
• The device or power supply may generate heat during operation. Do not cover one of them.
Sharp Edges:
• The device’s faceplate and components may have sharp edges. Handle with care to prevent cuts or scratches.
Small Parts:
• Contains small parts that could cause a choking hazard. Keep away from children and pets.
Compatibility:
• This module is intended for use only with devices operating at Eurorack or line level. Connecting it to incompatible systems may cause damage or malfunction.
Assembly Requirements
• Soldering skills are required to complete the unit.
• Ensure a clean, well-lit and ventilated workspace free of flammable materials during assembly.
• Use appropriate tools and safety equipment, such as eye protection.
Testing
• Test the module thoroughly for shorts or incorrect assembly before powering it up. When the unit has malfunctions due to incorrect assembly, the unit or power supply might be damaged.
• Use a multimeter or other appropriate tools to confirm proper functionality.
Installation and Use
• Use only the included or manufacturer-recommended power cable and/or power supply.
• Follow the module's user guide for instructions on operation. Do not exceed the input/output limits specified.
Responsibility
Users are solely responsible for proper assembly and testing. Contact manufacturer support for assistance if needed.
Environmental Safety
• Dispose of the module, its components, and packaging in accordance with local electronic waste regulations.
Liability Disclaimer
• The manufacturer or distributor is not responsible for any injury, damage, or malfunction resulting from improper installation, use, or modification of this product.
Contact Information
For further information visit the manufacturers homepage or shop support team at:
Tech Creation Lab Leipzig UG (haftungsbeschränkt)
Selneckerstr. 26, 04277 Leipzig, Germany
support@exploding-shed.com
