North Coast Synthesis - MSK 010 Fixed Sine Bank
Product information "North Coast Synthesis - MSK 010 Fixed Sine Bank"

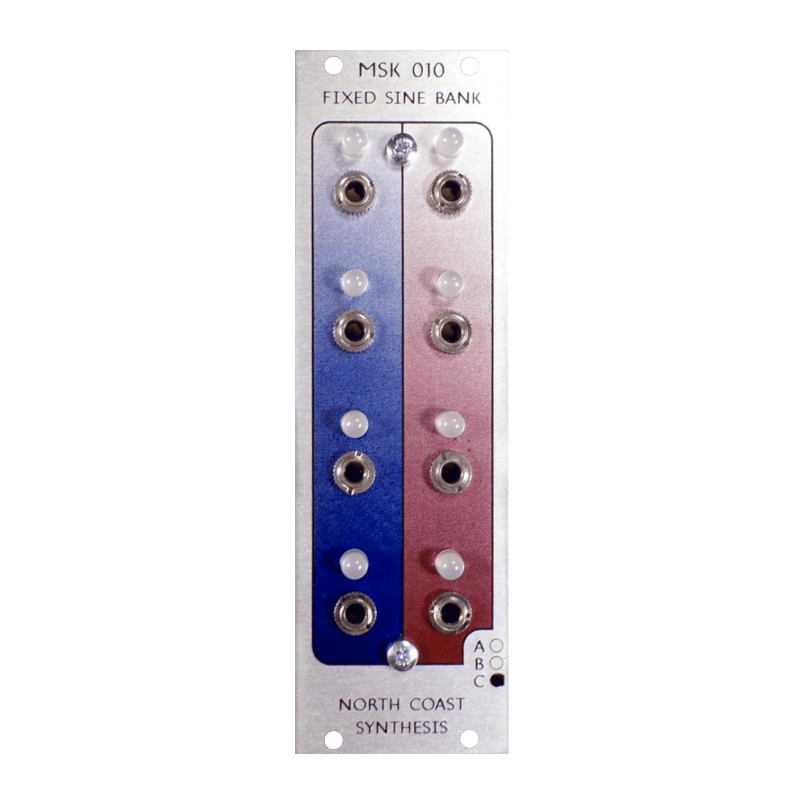

Choose one of three variants of this module, each with its own set of eight nominal frequencies and cycle times. There are no duplicate or near-duplicate frequencies between different variants, so with two or three, you get the full benefit of a larger modulation palette. Note that the nominal frequencies are just that; every module will have its own one-of-a-kind pattern of exact output frequencies within a few percent of the nominal values, due to component tolerances.
• Variant A - 16mHz, 60mHz, 190mHz, 410mHz, 720mHz, 1.3Hz, 4.8Hz, 16Hz (63s cycle time down to 63ms)
• Variant B - 34mHz, 88mHz, 160mHz, 280mHz, 600mHz, 1.8Hz, 3.4Hz, 11Hz (30s cycle time down to 94ms)
• Variant C - 28mHz, 72mHz, 130mHz, 340mHz, 2.2Hz, 4.1Hz, 7.2Hz, 8.8Hz (35s cycle time down to 110ms)
The MSK 010 is available as a pre-built 8HP Eurorack module or for do-it-yourself construction, with prices as low as zero (if you download the plans and source all the parts yourself). Imagine having enough LFOs to modulate everything.
Features:
• All-new design, not a clone or imitation of anything else
• Fast starting - full amplitude oscillations within one cycle of power-up, unlike the usual behaviour of an oscillating filter
• Through-hole design for easy hand construction and maintenance
• Connectors between boards, and panel components, mounted on the boards; no flying wires
• All three variants build from the same bill of materials; one full kit or PCB set can be used to build any one variant of your choice.
• No compromises on build quality: real aluminum panel, not PCB material, with colour printing; nickel and gold plating on the circuit boards; close-tolerance fixed resistors and integration capacitors.
• Complete technical documentation released under GPL
DIY-Kit-Type:
THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
| Current draw +12 V [mA]: | 40 |
|---|---|
| Current draw -12 V [mA]: | 40 |
| DIY Level: | Medium |
| Depth [mm]: | 43 |
| Width [HP]: | 8 |
| Format: | 3U |
| Panel / Color: | Silver Alu |
