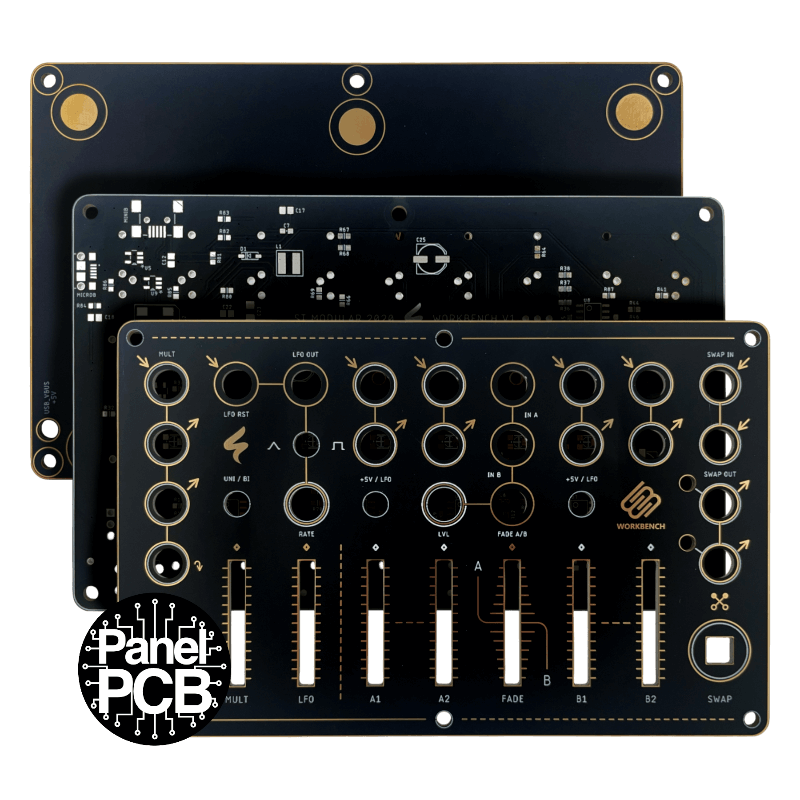

ST Modular - Workbench (Panel PCB)
Product information "ST Modular - Workbench (Panel PCB)"
Features:
• Multiple
• LFO
• Attenuator
• Fader
• Swap
• USB-Power
DIY-Kit-Type:
Panel/PCB Kit. This is a do-it-yourself panel/PCB kit, no parts are supplied, you will need to source them yourself.
| DIY Level: | Advanced |
|---|---|
| Depth [mm]: | 91 |
| Height [mm]: | 42 |
| Power Input Type (pri.): | 5 Vdc / USB Type C |
| Width [mm]: | 142 |
| Format: | 3U |
| Panel / Color: | Black FR4 |
ST Modular is a source for DIY Eurorack modules and synth kits, empowering builders to create custom modular synthesizers from supplied PCBs, panels and parts. The product range covers oscillators, filters, sequencers, mixers, LFOs, envelope generators and effects, plus compact desktop synths and utility tools – each module engineered for wide creative flexibility and hands-on sound design.
Born from a hobbyist’s experiments with breadboarding and electronics, ST Modular operates as a small non-profit: revenues are reinvested into prototyping new modules and instruments. The project grew from one enthusiast’s curiosity and practical learning through books, experiments and community exchange.
Rather than manufacturing in-house, ST Modular licenses designs to partner manufacturers. It sells PCBs, panels and DIY kits directly while select partners offer fully assembled modules for users who prefer ready-built gear, enabling both DIY builders and those who want finished products to benefit from the designs.
