Timo Rozendal - SDSV+
Product number:
100935
Product information "Timo Rozendal - SDSV+"

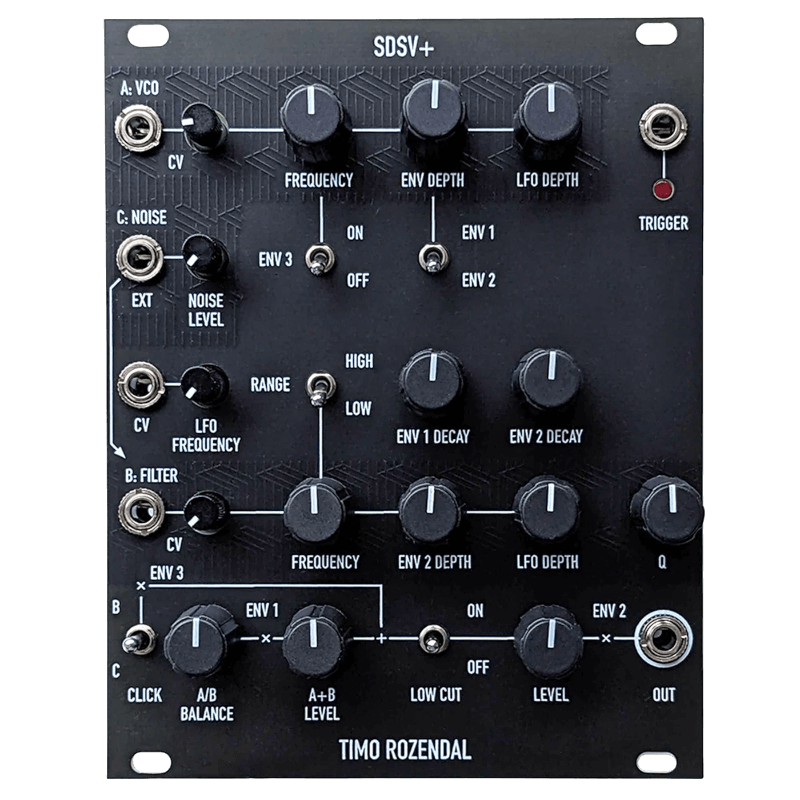

The SDSV+ is a Eurorack drum voice inspired by SyntherJack’s SDSV project and the iconic Simmons SDS5/SDSV drum machine. This enhanced version goes beyond the original by offering expanded sound-shaping capabilities and increased CV control, making it ideal for crafting everything from classic toms, snares, and kicks to hi-hat, crash, and FM-style metallic sounds. If you want to create vintage punch or experimental textures, the SDSV+ delivers dynamic percussion with modular flexibility.
Features:
• Envelope selection for the VCO and separate Decay pots
• Option to use unfiltered noise for click (and the option to turn click off altogether)
• Redesigned one of the envelopes to make it independent of input trigger length.
• More CV inputs
• Noise level control
DIY-Kit-Type:
SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
Features:
• Envelope selection for the VCO and separate Decay pots
• Option to use unfiltered noise for click (and the option to turn click off altogether)
• Redesigned one of the envelopes to make it independent of input trigger length.
• More CV inputs
• Noise level control
DIY-Kit-Type:
SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
| Current draw +12 V [mA]: | 30 |
|---|---|
| Current draw -12 V [mA]: | 30 |
| DIY Level: | Easy/Medium |
| Depth [mm]: | 25 |
| Width [HP]: | 20 |
| Format: | 3U |
| Panel / Color: | Black FR4 |
