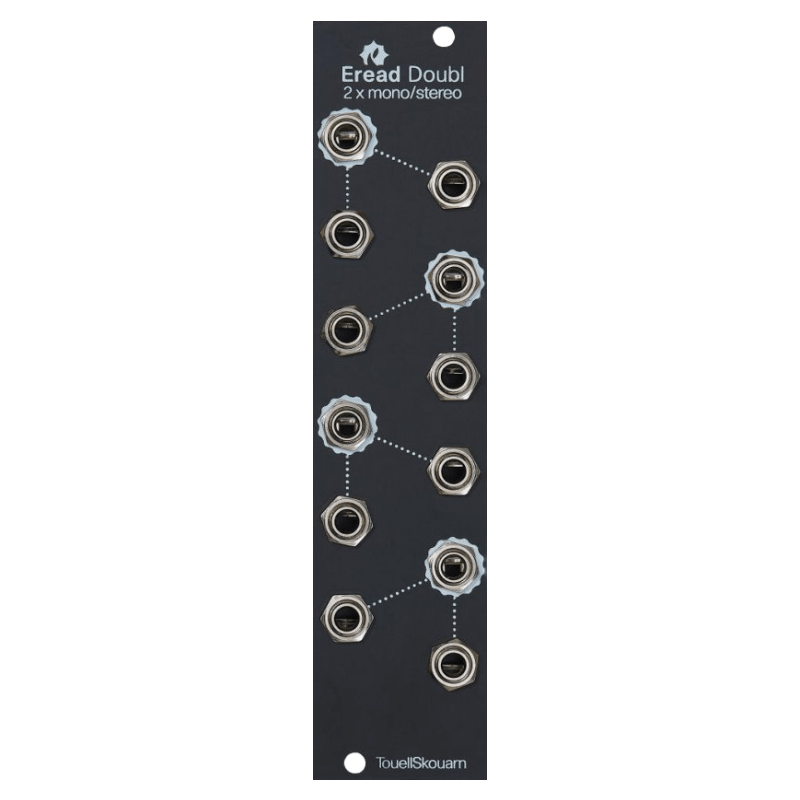

TouellSkouarn - Eread Doubl
Product information "TouellSkouarn - Eread Doubl"
The module also functions as a stereo-maker: two mono inputs can be combined into a stereo output via the module’s stereo jack.
DIY-Kit-Type:
SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
| DIY Level: | Easy |
|---|---|
| Depth [mm]: | 10 |
| Width [HP]: | 6 |
| Format: | 3U |
| Panel / Color: | Black FR4 |
In 2010, Gaël Loison (musician (Dale Cooper Quartet, Noroeste, Moregeometrico) and graphic designer (Ultra Rapide Canari) developed a electronic brand dedicated to the design, manufacture and sale of electronic musical instruments : TouellSkouarn. The brand has distinguished itself internationally by its special design, its sound and the use of Breton language. Its reputation has been enhanced by the use of TouellSkouarn products by music's big names - Depeche Mode, Yann Tiersen, Stereolab, Gareth Jones, Blawan, Marc Caro, Sunn O)))
Login
Manufacturer / Hersteller:
Ultra Rapide Canari Sarl
24, rue Jean Corre
29470 Plougastel
France
gael@touellskouarn.fr
Product Safety Information
Please read this safety guide before installation or use.
Important Notice & Intended Use
• This kit is intended for adult users experienced in electronics and modular synthesis.
• The completed module is intended for installation in a Eurorack-compatible synthesizer system.
General Warnings
Sharp Edges:
• The module’s faceplate and components may have sharp edges. Handle with care to avoid cuts or scratches.
Small Parts:
• Contains small parts that could cause a choking hazard. Keep away from children and pets.
Compatibility:
• This module is designed specifically for Eurorack-compatible systems. Connecting it to non-compatible systems may result in damage or malfunction.
Assembly Requirements
• Soldering skills are required to complete the module.
• Ensure a clean, well-lit and ventilated workspace free of flammable materials during assembly.
• Use appropriate tools and safety equipment, such as eye protection.
Testing
• Test the module thoroughly for shorts or incorrect assembly before powering it in your Eurorack system. When the unit has malfunctions due to incorrect assembly, the entire Eurorack system might be damaged. It's a good idea to test it in a separate case with only that single module.
• Use a multimeter or other appropriate tools to confirm proper functionality.
Installation and Use
• Mount securely in a Eurorack case using the provided screws.
• Connect only when the power is off.
• Follow the module's user guide for instructions on operation. Do not exceed the input/output limits specified.
Responsibility
Users are solely responsible for proper assembly and testing. Contact manufacturer support for assistance if needed.
Environmental Safety
• Dispose of the module, its components, and packaging in accordance with local electronic waste regulations.
Liability Disclaimer
• The manufacturer or distributor is not responsible for any injury, damage, or malfunction resulting from improper installation, use, or modification of this product.
