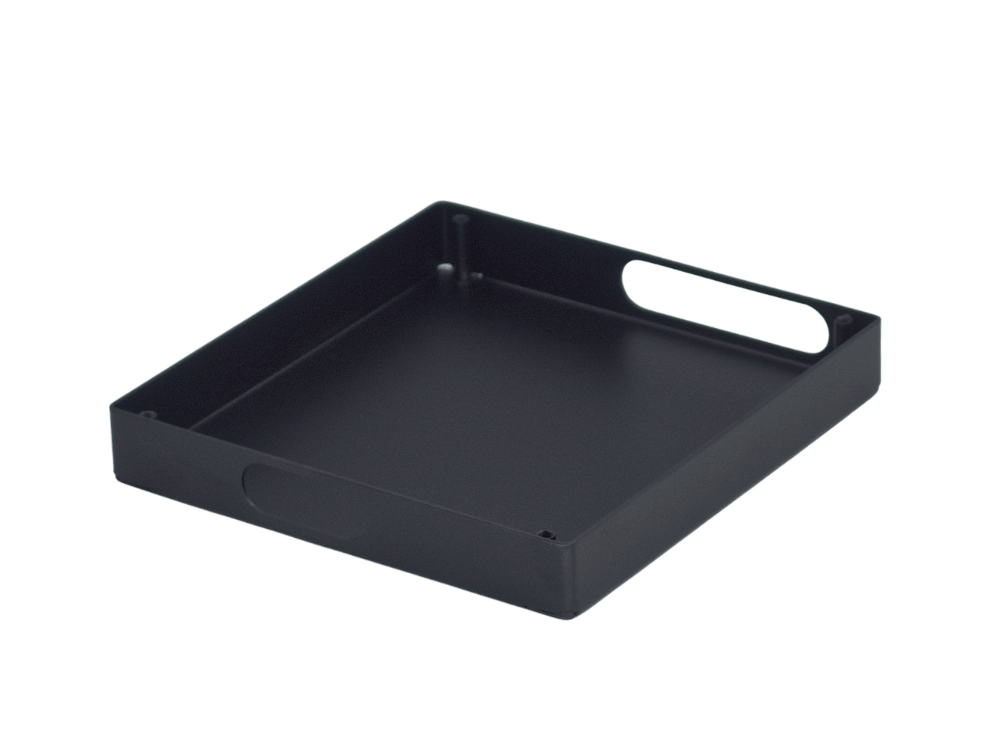

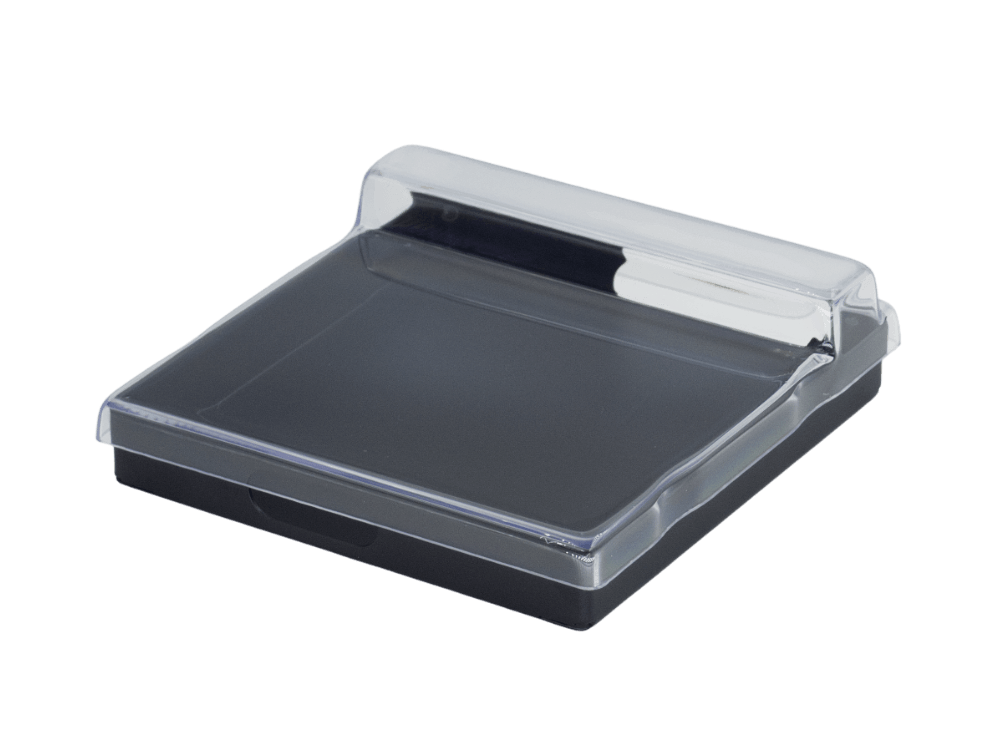

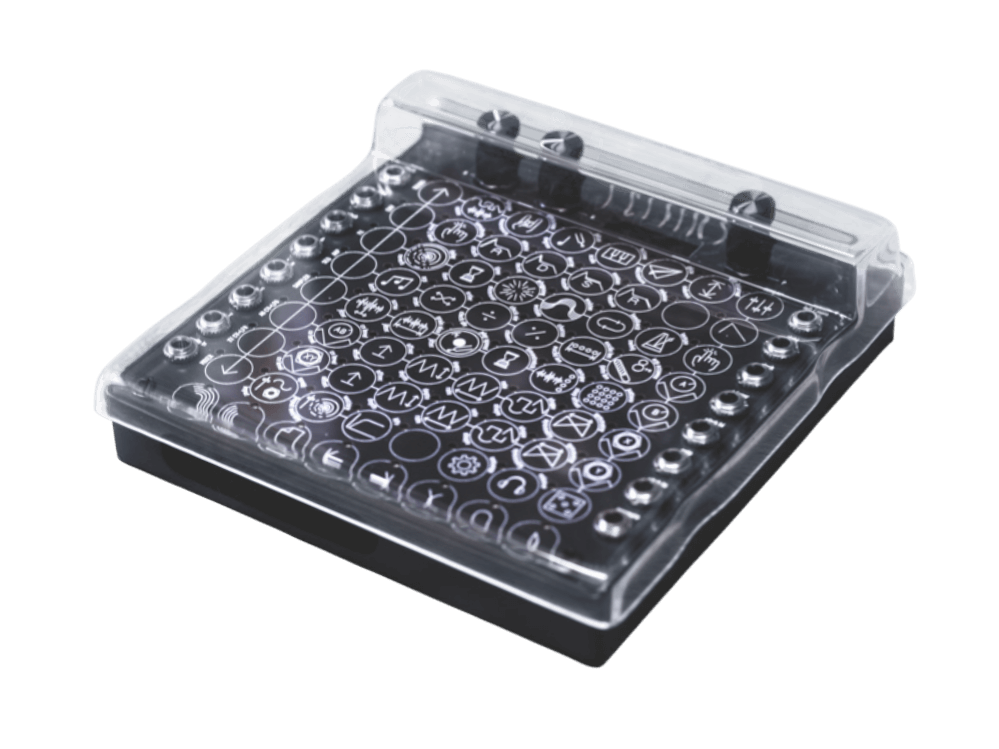

Plinky with Metal Case and Dust Cover
Product information "Plinky with Metal Case and Dust Cover"

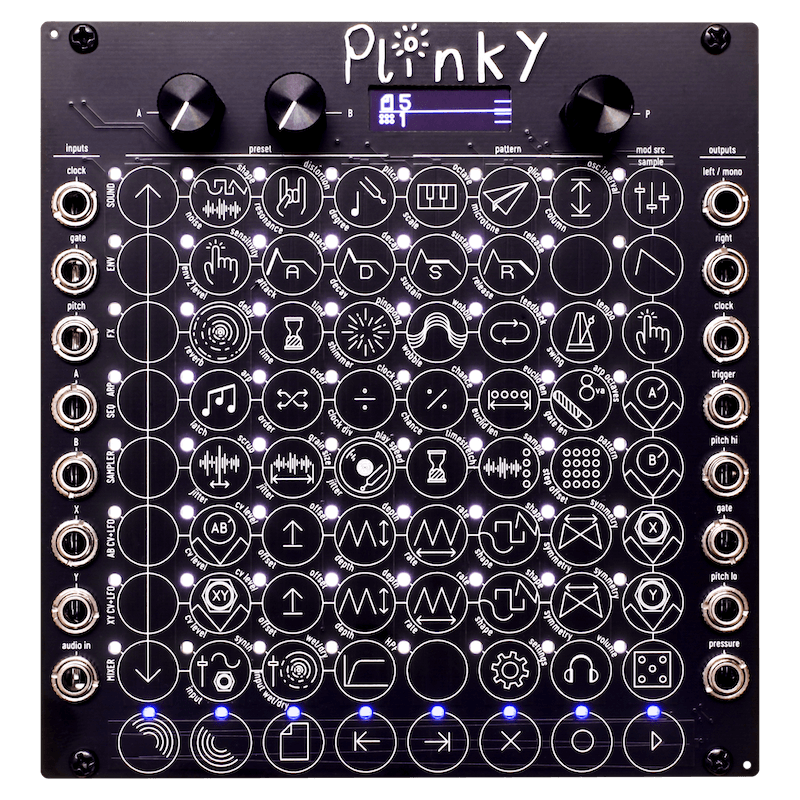

Plinky is an 8 voice expressive polyphonic touch synthesizer that specializes in fragile, melancholic sounds, designed by mmalex.
Think of it as an eight stringed instrument, with eight vertical monophonic strips. You can play it straight away on its 64 main pads. Each of the eight strings has 4 oscillators or sampler grains, detuned by the touch of your fingers, white noise, two ADSR envelopes and a resonant 2-pole low-pass gate. Plinky also has a global delay, reverb, high pass filter and saturation along with a simple mixer, arpeggiator, sequencer and sampler. It supports four external CV modulation sources, each with their own LFO.
Plinky was released in 2021, then hit hard by the chip crisis. In coordination with Plinky’s creator mmalex, Making Sound Machines are bringing back Plinky both as assembled unit and as a beginner-friendly DIY Kit.
Plinky v3 integrates TRS MIDI input and output directly on-board, so you sequence polyphonic chords externally and play a melodic line on top on its touch surface.
The revision also upgrades to USB-C, optimizes the build experience, and introduces improvements to the audio path.
Works as standalone unit with USB-C power or Eurorack power cable.
DIY-Kit-Type:
SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
| Current draw +5 V [mA]: | 150 |
|---|---|
| Current draw +12 V [mA]: | 10 |
| Current draw -12 V [mA]: | 10 |
| DIY Level: | Easy/Medium |
| Depth [mm]: | 12 |
| Width [HP]: | 24 |
| Format: | 3U |
| Panel / Color: | Black FR4 |
Login
Manufacturer / Hersteller:
Making Sound Machines Nebe, Gissel GbR
Flurstr. 68
40235 Düsseldorf
Germany
post@makingsoundmachines.com
Product Safety Information
Please read this safety guide before installation or use.
Important Notice & Intended Use
• This module is intended for adult users experienced in electronics and modular synthesis.
• The module is intended for installation in a Eurorack-compatible synthesizer system powered by ±12V and +5V.
• Use outside this scope may result in malfunction, damage, or safety risks.
General Warnings
Electrical Hazards:
• Ensure the power supply matches the module’s specified voltage and current ratings (refer to the product manual). Incorrect voltage can damage the module and pose a safety risk.
• Never connect or disconnect the module while the Eurorack system is powered on.
• Wrong polarity can damage your module or system. Make sure the module is connected with correct polarity.
Heat Generation:
• The module may generate heat during operation. Ensure proper ventilation within your Eurorack case to prevent overheating.
Sharp Edges:
• The module’s faceplate and components may have sharp edges. Handle with care to avoid cuts or scratches.
Small Parts:
• Contains small parts that could cause a choking hazard. Keep away from children and pets.
Compatibility:
• This module is designed specifically for Eurorack-compatible systems. Connecting it to non-compatible systems may result in damage or malfunction.
Installation and Use
• Mount securely in a Eurorack case using the provided screws.
• Use only the included or manufacturer-recommended power cable.
• Connect only when the power is off.
• Follow the module's user guide for instructions on operation. Do not exceed the input/output limits specified.
Environmental Safety
• Dispose of the module, its components, and packaging in accordance with local electronic waste regulations.
Liability Disclaimer
• The manufacturer or distributor is not responsible for any injury, damage, or malfunction resulting from improper installation, use, or modification of this product.
