Input module with DJ influence, RCA in and selectable line and phono input (RIA filter), with three modular level outputs Left, Right and Mono sum. Level gain with fader volume for live purposes.Features:• RCA input• Phono (RIA) or line• Gain and fader volumen• Stereo a Mono sum Output modular levelDIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
The Percussion Interface (PI) and PI Expander are a pair of Eurorack modules that generate gates and envelopes from acoustic drums, samplers, drum machines, and virtually any audio source.Converting microphone, instrument, line and modular signals into CV and clock/gate signals, the PI and PI Expander are suited for synchronizing sequencers or other modules to the rhythm of an audio track or live percussion. The modules can simultaneously be used as a pre-amp for microphones or line-level signals, while generating inverted envelopes useful for side-chaining. The PI module contains all the core functionality and can be used without the Expander to conserve space. The Expander requires the main PI modules and adds three gain stage options, a modular-level audio output jack, a 1/4" (6.35mm) input jack, and envelope attenuation capabilities. The two modules are only sold together, they are not available separately.Features:• Sensitivity knob, Low/Medium/High gain switch, and clipping LED• Sustain control to prevent misfires, increase gate length, and control the envelope• Envelope decay control• Non-inverted and inverted envelope outputs, useful for side chaining• Four envelope outputs: two attenuated with independent attenuators, and two non-attenuated• Envelope following or generation modes• Gate output for clocking sequencers or any unit with a clock or trigger input• Compatibility with drums, pads, samplers, microphones, piezos, drum machines, etc.• 1/8" or 1/4" input jack (6.35mm)
With the ADDAC304 Manual Gates you'll be getting 8 manual gates (0 +5v) in a nifty package - a perfect way to perform on and control your modular system.The ADDAC304 comes with an interesting twist: 4 out of the 8 available gates can act as momentary switches, outputting the signals in their respective inputs when each gate’s button is pressed.DIY-Kit-Type:SMD-Kit-2. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. It includes SMD and through-hole parts! For build guide, more info, videos etc. please check the buttons below.
The ADDAC305 Manual Latches is a combination of 8 manual latching switches in a small and elegant module: each button toggles between Gate high / Gate low when pressed, outputting a 5V gate signal. Additionally, 4 of the 8 available latches sport inputs and can act as manual latching switches, allowing the incoming signal to pass to the output when the button is toggled.DIY-Kit-Type:SMD-Kit-2. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. It includes SMD and through-hole parts! For build guide, more info, videos etc. please check the buttons below.
Another addition to our ADDAC300’s Expressive Controls series. This module converts the incoming light hitting an external light sensor into 2 Bipolar CV Streams:Output: More light > Higher CV outputInverted Output: More light > Lower CV outputThe external sensor is enclosed in a jack socket in order to be used with any standard jack cable and be able to place it in any place outside the Eurorack frame.There are several controls to adjust the CV Output’s signals:• Sensitivity: Adjusts the Light Sensor sensitivity to Light. The Higher the sensitivity the better it responds to low light situations.• Response: 3 fixed settings (medium/fast/slow) to set the slew applied to the raw signal coming from the sensor.• Gain: Sets the gain for both outputs• Offset: Adjusts the Offset for the main Output.• Inverted Offset: Adjusts the Offset for the Inverted Output.DIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.

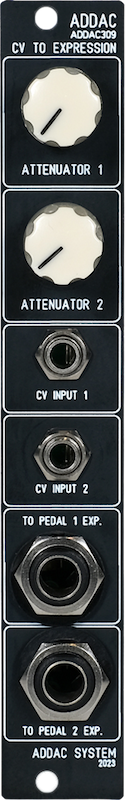

ADDAC309 CV to Expression allows a simple and straight forward connection between modular and effect pedals that features expression pedal TRS inputs.Instead of using an expression pedal into the effects pedal the user can use this module in between a CV source and the effects pedal to be controlled. This is a great way to control the available parameters on the effects pedals straight from a CV source.ADDAC309 features 2 channels each with a CV input with attenuator and a 1/4" jack output.This is a passive module, the power needed for operation is taken from the pedal power instead of the modular frame, this allows for perfect matching of the pedal’s operating voltage which can range from 3,3 V to 9 V.DIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.

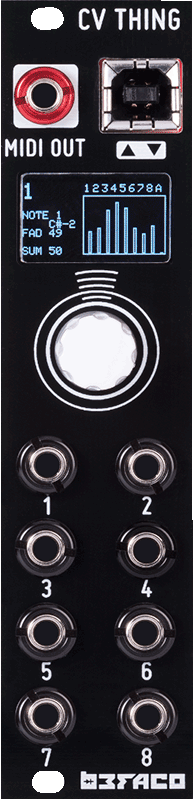

CV Thing is a fully mappable CV to MIDI converter in just 6HP. Its based on our VCMC module, but aiming for small and compact performance rigs. It has eight inputs that can be mapped to any MIDI message quite easily thanks to its simple and intuitive user interface. CCs, Program change ,V/Oct to Note or Clock are some of the messages that can be configured to easily control MIDI gear from your modular rig.Features:• Class-compliant USB MIDI and TRS connectors.• TRS to DIN5 Type A adaptor included.• 8 CV inputs.• Controls fully mappable to any MIDI message (CC, Notes, Program change, Clock, ST/SP, NRPN…)• Configurations are saved both in internal memory and via Sysex.DIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
Hexpander adds great functionality to Hexmix module. Featuring Three aux send with stereo returns, individual outputs for each channel, complete PFL system and balanced output.Hexpander is designed to be placed on top of Hexmix. Expanding Eurorack concept to 6U, allows every channel to be aligned as in traditional tabletop mixers.Features:• Three auxiliar sends with stereo returns and individual controls per channel.• Pre and Post Fader/EQ outputs.• Selectable Line/Modular level at return inputs.• Monitor section with PFL per channel.• Individual PostEq output per channel.• Master section with Headphones amp and balanced line outputsDIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
A compact attenuverting (attenuator-inverter) joystick controller and Gate Generator. With it, you can generate and process two control voltages using only one hand. Provided controls for CV ranges and offset adjust the boundaries of your control, this way it never gets out of the desired range, ensuring sensibility and playability even with wild performance gestures.Features:• Robust arcade style joystick for manually generating either CV with Range and Offset control or attenuating two input signals• Two push buttons to generate gates manually.DIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
Morphader is a performative tool designed to make multichannel CV/Audio crossfade easy and comfortable. Fading from one quad CV/audio scene to another. The core of the module has four CV controlled crossfaders, each with their individual control and a master fader to control them all. The module mixes the four crossfades at its fourth output, thanks to a clever normalization scheme. Each of them can be easily removed from the mix by plugging a cable at its own output.Features:• CV Controlled four channel crossfader.• Attenuators per input.• Normalized voltages to every input, allowing cv levels morphing.• Audio CV response switch per channel• Master Fader control with Lag.• Leds per channel for signal level monitoring.DIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.

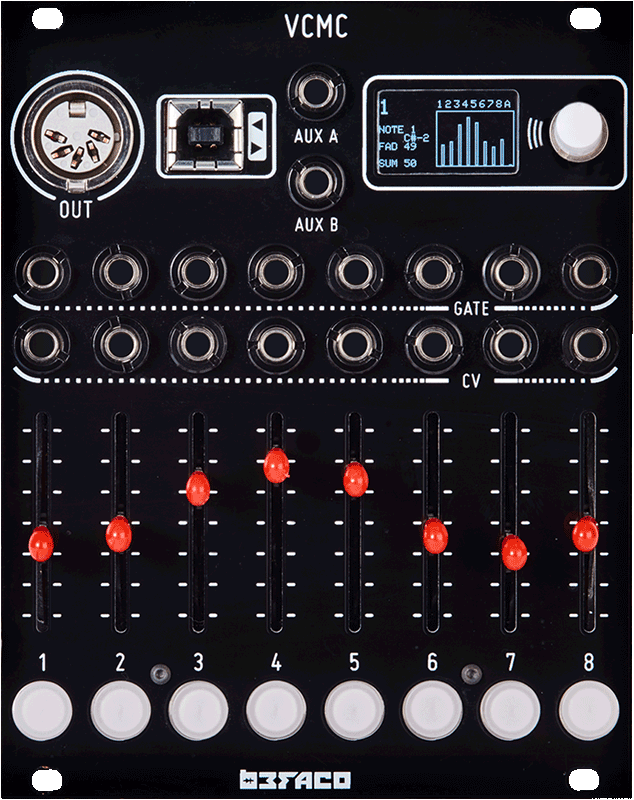

This thing is totally awesome! Why? Imagine your plugins being controlled from your modular by CV! VCMC is a voltage-controlled MIDI controller. A fully editable MIDI controller with eight faders and push-buttons. Each of them with a CV or Gate input associated to automate their functioning via external signals or to be configured independently for further control. Each control on VCMC can be edited on its OLED screen and will be output either via DIN-5 or USB as a class-compliant MIDI device. DIYers can modify the module to make it standalone.Features:• Class-compliant USB MIDI and DIN5 connectors.• 10 CV inputs And 8 gate inputs.• 8 Faders and 8 Buttons.• Controls fully mappable to any MIDI message (CC, Notes, Program change, Clock, ST/SP, NRPN…)• Configurations saved both in internal memory and via Sysex.• Online Web EditorDIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
This is our new collaboration with Robin Vincent aka Molten Music Technology. A Stereo bypass module to gate control the send of your signals to your favorite effect!Molten bypass features a hard/soft bypass control, to hard cut the return of your effect or allow the long tails of your reverb to stay after you bypass the effect. Also a gate/latch control to use either triggers or gates for control and a gain control for the returned signal.Festures:• Full stereo signal path• DC coupled• Hard or soft bypass selection• Gate or Latch possibility• Manual or Gate control• Gain control over the returnDIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.

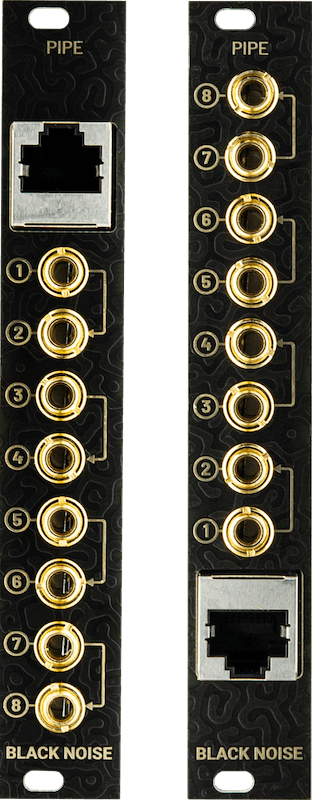

Now introducing PIPE in our sleek Black & Gold theme, featuring a reversible faceplate. Feel like installing your PIPE upside down? No worries – just unscrew the 8 jnuts, flip the faceplate, and put everything back together and Voila! You can now use your PIPE with the connector facing down!With the ability to connect up to 8 inputs or outputs via an ethernet cable, the PIPE-S makes it easy to connect multiple cases together or avoid any cable mess accross a case. This makes it the perfect solution for simply setting up your Eurorack system in the studio or a live gig.But that's not all, PIPE can also be used as a multiple passive 3 section. Want to transmit precise signals like pitch CV and want to avoid crosstalk induced by passive multiples? No worries you can easily deactivate this function for each section from the connector at the back of the module.The best part is that PIPE is completely passive which means you can place it anywhere, it doesn't draw any current from your power supply, which perhaps makes it the simplest DIY module!PIPE modules are sold by pair.The ethernet cable is not supplied with the modulesRegarding Ethernet cableWe recommend shielded Straight-Thru RJ45 cable.Using un-shielded or Crossover cable won't damage your modules but you may experience noise and or mixed channels.Due to its passive nature we also recommend to avoid long ethernet cables.DIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
With the ability to connect up to 8 inputs or outputs via an ethernet cable, the PIPE-S makes it easy to connect multiple case together or avoid any cable mess accross a case. This makes it the perfect solution for simply setting up your Eurorack system in the studio or a live gig.But that's not all, PIPE-S can also be used as a multiple passive 3 section. Want to transmit precise signals like pitch CV and want to avoid crosstalk induced by passive multiples? No worries you can easily deactivate this function for each section from the connector at the back of the module.The best part is that PIPE-S is completely passive which means you can place it anywhere, it doesn't draw any current from your power supply, which perhaps makes it the simplest DIY module!PIPE-S modules are sold in pairs.The ethernet cable is not supplied with the modulesRegarding Ethernet cableWe recommend shielded Straight-Thru RJ45 cable.Using un-shielded or Crossover cable won't damage your modules but you may experience noise and or mixed channels.Due to its passive nature we also recommend to avoid long ethernet cables.DIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
The Garden Listener Eurorack module detects conductivity variations on living beings’ surface and transforms them into MIDI notes and CV signals. For once, leave those LFOs alone, and let any living conductive being modulate your signals. It detects conductivity variations on living beings’ surface and transforms them into MIDI notes, ranging from C-1 to C8, and CV signals (0 – 5V).Its behavior can be tamed through the one-knob menu from which you can choose and modify:• probes’ sensitivity (making it more or less sensitive to current variations)• scale (chromatic, major, minor, indian and arabic)• MIDI channel (from 1 up to 16)• LEDs’ brightnessIt generates trigger, gate, and CV (1V/oct). The CV output behavior can be modified via an octave selector which acts as a “CV equalizer” from which you can choose to generate CV only if the respective MIDI note lies within a certain octave range.The MIDI output allows you to take advantage of the sound of either any synthesizer equipped with a MIDI port or any VST in your DAW.The module comes with 3.5mm white probes and a set of snap-on adhesive reusable electrode pads. A MIDI-TRS type A adapter (not included) is required for the MIDI output.DIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
Pocket-sized MIDI controller with built in Accelerometer!The 8mu is a pocket-sized MIDI controller (slightly smaller than a credit card!) with eight faders that can send messages via MIDI. The 8mu also has a built in accelerometer which measures how the device is being held. This creates eight more control signals, mapped to gestures like “lift the front” or “turn me over”. There are four tiny buttons along the top edge, which can be configured to send MIDI notes (like a keyboard) or control signals.MIDI data is sent via a 3.5mm TRS MIDI output, which can be Type A or Type B, and via USB-C. Only standard USB data lines are used, so it should work on any USB computer with an adaptor. The device is also powered via USB. 8mu can store 8 banks of CC settings which can be accessed using the left and right buttons on each side of the device.8mu has a web editor where you can edit all the settings: Launch the 8mu Editor, and there is a quickstart guide printed on the back or get a quickstart PDF by the buttons below.The 8mu design was inspired by the 16n project but the hardware is quite different. The editor is a modified version of the 16n editor by Tom Armitage. 8mu cannot send i2c or CV, but it’s designed to be open and hackable and can be re-programmed in Arduino or Circuit Python code.Features:• Size: 81 x 47 mm• The body is 13 mm tall, or 24 mm with the faders and fader caps• It weighs 65 gDIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
The Solar Voltages is a 2 HP, 2-channel Solar Cell module which outputs two separate control voltages in response to light. Each channel outputs approximately 0-5 V, with higher voltages corresponding to more intense and/or direct light. As the two channels can be manipulated with relative independence, the Solar Voltages makes for a great low-profile and multi-dimensional “light theremin” for direct and spontaneous control of two different parameters at once.Features:• Two channel 0-5 V solar panel-based light controller• Generates its own current from ambient light• Ultra-slim design• Filter caps to remove extraneous noiseDIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
€53.00*
