Electronic & Mechanical Parts
available
M5 screw (20mm thread length), DIN 965 countersunk head PH drive.For connecting side-parts of your case and rails.
available
M5 screw (20mm thread length), DIN 7985 dome head PH drive.For connecting side-parts of your case and rails without side-brackets.
available
M5 screw (20mm thread length), DIN 966 raised countersunk head PH drive.For connecting side-parts of your case and rails without side-brackets.Mix between countersunk and dome head, sinks in about 50%.
available
Self-tapping M5 screw (25mm thread length), DIN 7516 countersunk head Torx drive (TX25).Recommended screw for connecting side-brackets to our rails.
available
M5 screw (30mm thread length), DIN 965 countersunk head PH (Phillips) drive.For connecting side-parts of your case and rails.
available
M5 screw (30mm thread length), DIN 7985 dome head PH drive.For connecting side-parts of your case and rails without side-brackets.
available
M3 screw (30mm thread length), DIN 966 raised countersunk head PH drive.For connecting side-parts of your case and rails without side-brackets.Mix between countersunk and dome head, sinks in about 50%.
available

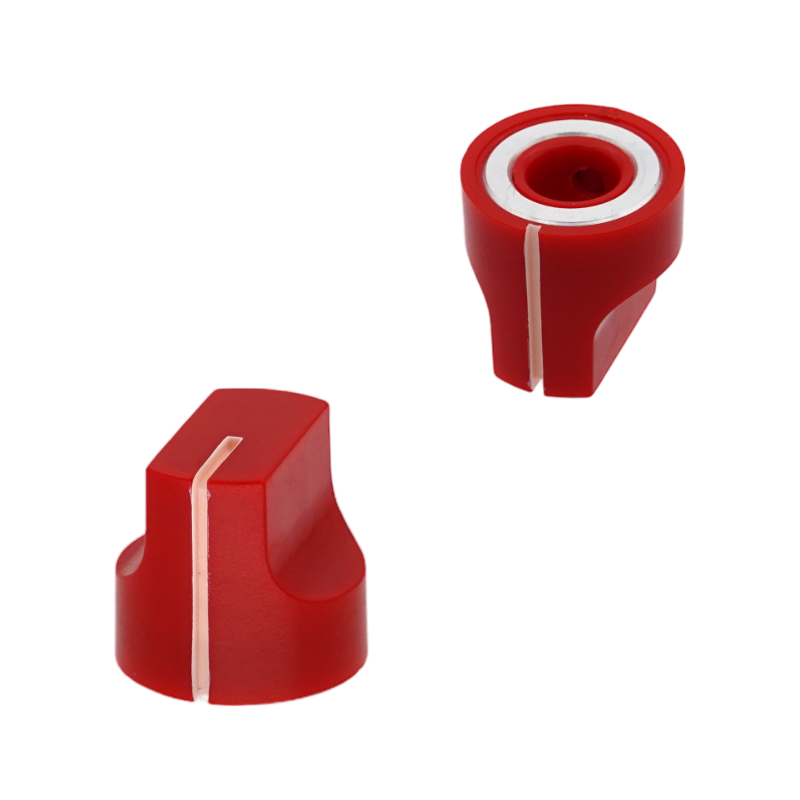

This is a classic knob known as Skinny Pointer knob. Info: Generally we measure the diameter at the widest point.
available
Silver Smooth Nuts M6 x 0,5 mm. They can be used for Thonkiconn and similar 3,5 mm audio connectors. Available in bags 20 and 50 pieces.Available variations:• Hex Nuts• Knurled Nuts• Smooth Nuts
available
These M9 x 0,75 black Smooth nuts offer a fine thread pitch, durable steel construction, and corrosion resistance—ideal for mechanical applications.
available

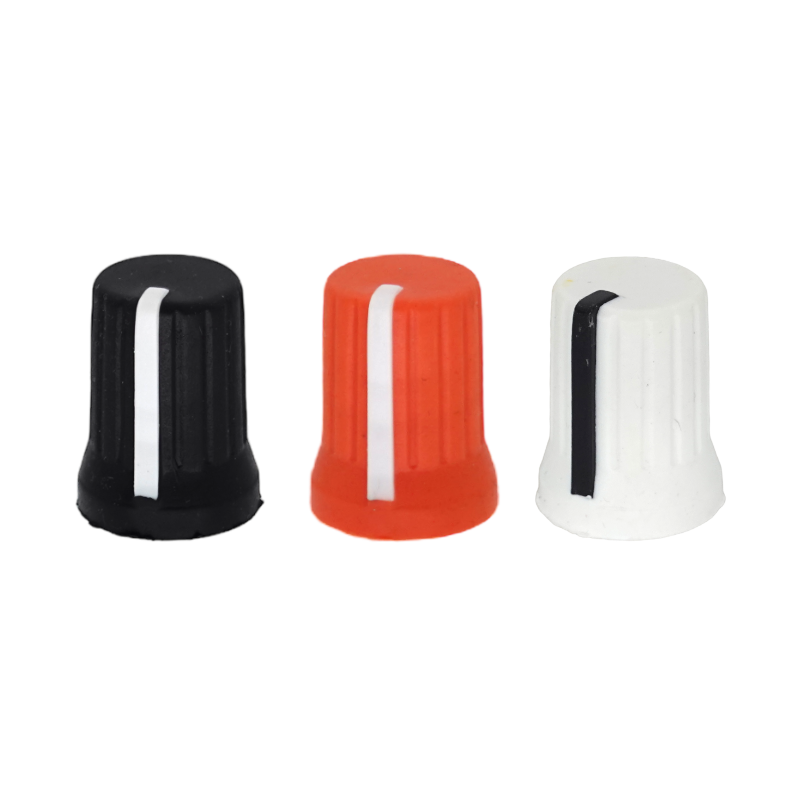

This rather tall knob has a smooth soft grip and a modern look. It features a D-shaft and an elegant pointer. Info: Generally we measure the diameter at the widest point.
available
Song Huei R16K1, B100k (lin), horizontal, 6mm round shaft, PCB mount. Shaft length incl. threading is 15mm, without threading it’s 8mm. M7x0,75 threading, needs a 7mm hole. Rotation angle 300°. This is one of the classic pots for guitar effect boxes.
available
Song Huei RK1114N linear potentiometer vertical. Rotation angle 300°. 6mm D shaft for push-on or knobs with set-screw, shaft length "L" 17,5mm (including threading). M9 hole needed in front panel. Nut and washer included.
available
The usual Song Huei R0904N alias tall trimmer pot. Vertical 9mm snap-in trimmer potentiometer with knurled 17mm long shaft. Linear (B) and logarithmic (A) taper, black, blue or red shaft (colors might run out, black should be always available). Rotation angle 280°. 6mm diameter round, knurled shaft with white indicator line.
available

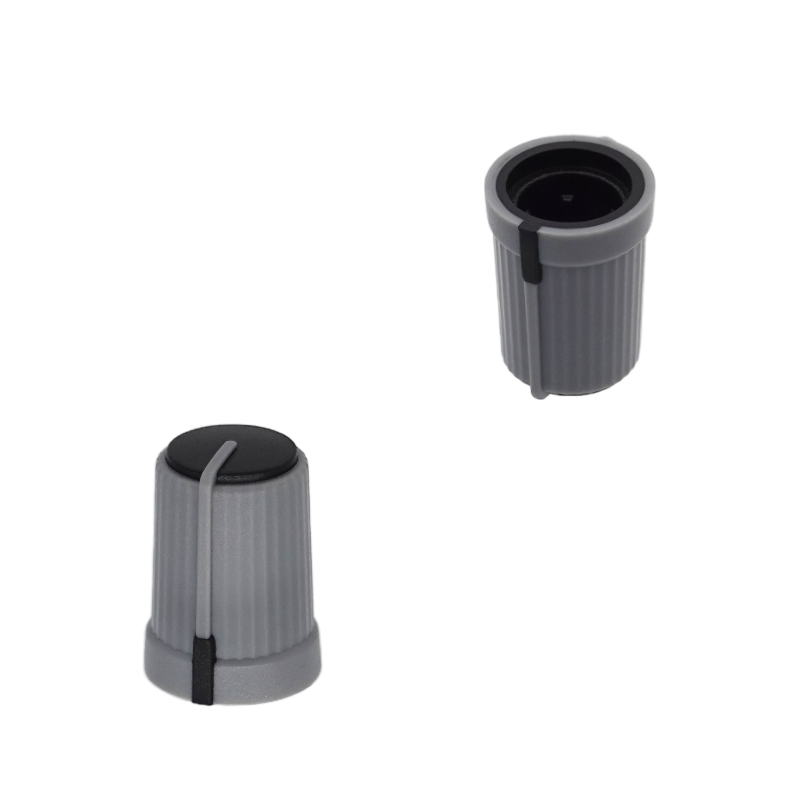

This is a rare, simple but stylish plastic knob with a 45° offset D-shaft. Might be useful for EQs in mixing desks, where pots are built in with a 45° offset to save space. Info: Generally we measure the diameter at the widest point.
available

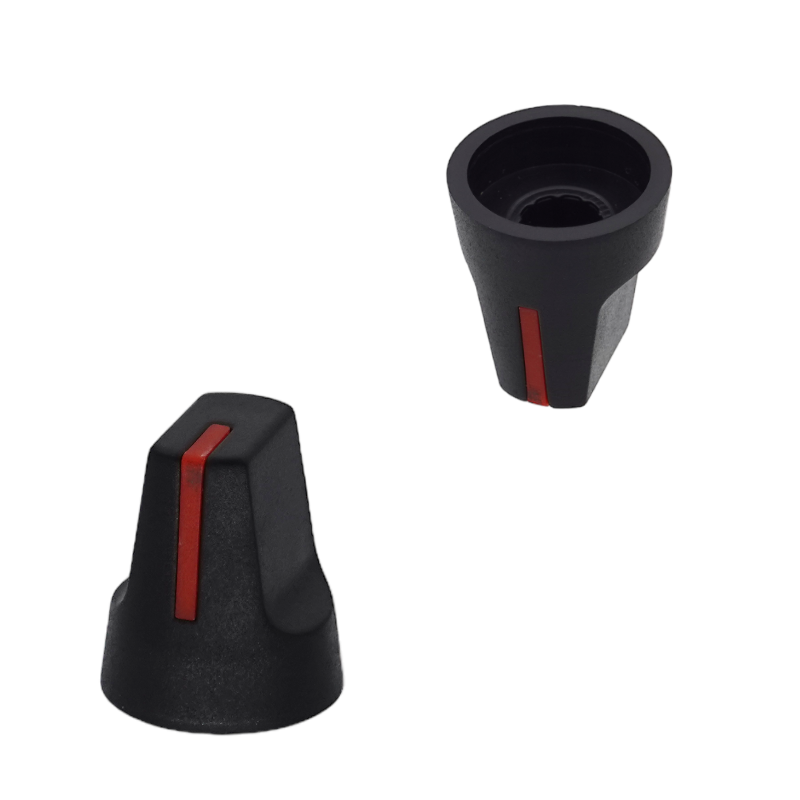

This is a tall Skinny Pointer knob with a narrowing shape towards the top. Info: Generally we measure the diameter at the widest point.
available

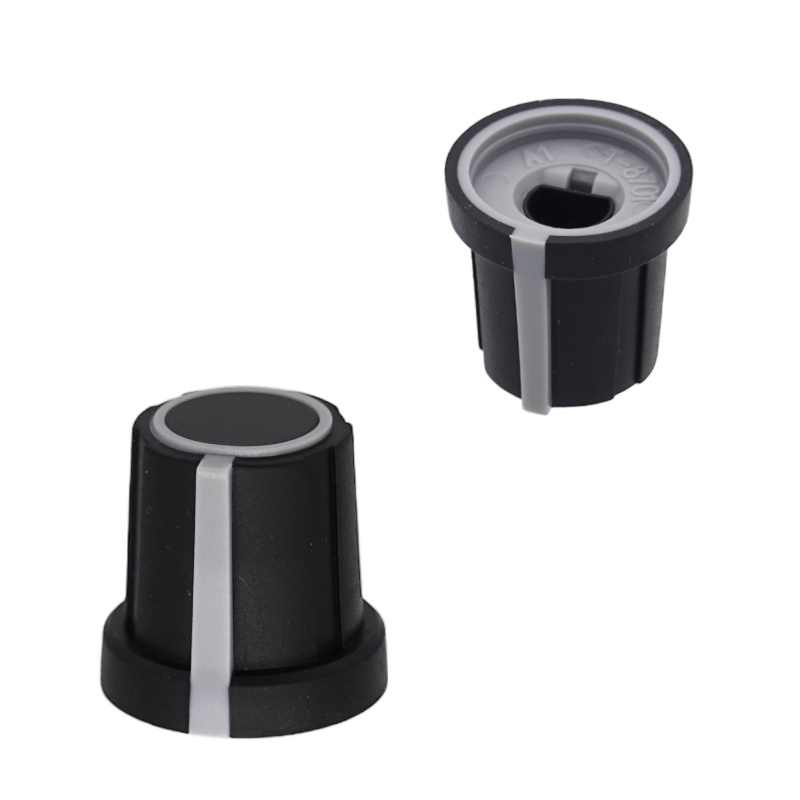

An elegant tall Soft Grip knob with a nice rubbery feel. Available in various colors. It features a D-shaft insert, that can be inserted in different rotation angles, which makes it very versatile. Info: Generally we measure the diameter at the widest point.
available
Tayda Potentiometer with 6mm T18 shaft. Shaft length incl. threading is 17mm, without threading it’s 10 mm. M7x0,75 threading, needs a 7 mm hole. Rotation angle 300°.
available
Thonkiconn is the standard audio connector in Eurorack. 3,5 mm mono connector with switching function for PCB mounting. Dimensions: effective total body height 10mm, threading 4,5 mm, needs a 6 mm hole in the panel.Older versions were named PJ398SM and PJ301M-12. The new version is called WQP518MA, is more reliable and has a longer lifecycle. Another difference is that the older ones had a semi-round tab (the part between body and threading, where the front panel will sit on) and the new ones have a rectangle tab, but the height is completely the same. Footprint and dimensions are the same.Don’t forget to buy nuts separately, they are not included!
available
Stereo version of Thonkiconn, the standard audio connector in Eurorack. 3,5 mm stereo connector without switching function for PCB mounting. Dimensions: effective total body height 10 mm, threading 4,5 mm, needs a 6 mm hole in the panel. The stereo version is 1 mm wider than the mono version.The older version was named PJ366ST. The new version is called WQP419GR. Another difference is that the older ones had a semi-round tab (the part between body and threading, where the front panel will sit on) and the new ones have a rectangle tab, but the height is completely the same. Footprint and dimensions are the same.Don’t forget to buy nuts separately, they are not included!
